OV5648 MIPI Camera Module 5MP 90FPS for HD Video

Brand Name : Sinoseen

Model Number : SNS51867-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : MIPI Camera Module

Sensor : OV5648 1/4 inch

Resolution : 5MP 2592*1944

Dimensions : Customizable

Frame Rate : 90FPS

Lens FOV : 125°(optional)

Interface : MIPI

Feature : low crosstalk and low noise

Contact Now

Still bothered by laggy video recording and poor image quality on your smartphones and tablets? The Sinoseen SNS51867-V1.0 Camera Module is set to become a new benchmark for HD video in mobile devices. It features an OmniVision OV5648 CMOS sensor, which not only provides 2592x1944 5MP HD images but also supports an ultra-high frame rate of up to 90 frames per second. This completely addresses the pain points of traditional devices with choppy footage and lost details when capturing fast-moving objects. Experience unprecedented smoothness and clarity for everyday recording, sports capture, or high-definition video calls.


The OV5648 sensor, powered by its OmniBSI+ technology, excels in high sensitivity and low noise, ensuring pristine and detailed image quality even in low-light environments. The module utilizes a MIPI interface to guarantee high-speed and stable data transmission. Its fixed-focus design simplifies operation, allowing users to effortlessly capture high-quality images without manual focusing. Choose the Sinoseen SNS51867-V1.0 to bring professional-grade imaging upgrades to your smartphones and tablets, making every recording vibrant and full of detail!

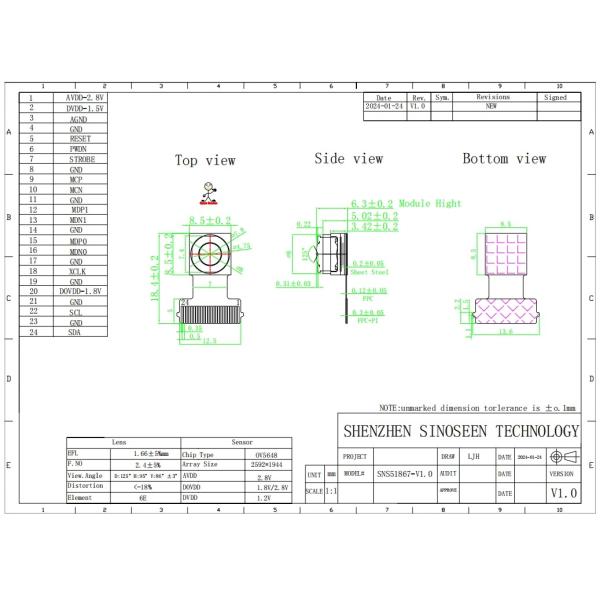

Specification

Module

SNS51867-V1.0
Sensor OV5648 CMOS
Pixel 5MP
Most effective pixels 2592*1944
Pixel Size 1.4um*1.4um
Frame rate 90fps
Focus type Fixed focus
Output interface 2-lane MIPI
Output formats 8/10-bit RGB RAW
Shutter Type Rolling shutter
Max image transfer rate

QSXGA:15fps

1080p:30fps

960p:45fps

720p:60fps

VGA:90fps
Max S/N ratio 34dB
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC











OV5648 MIPI Camera Module 5MP 90FPS for HD VideoOV5648 MIPI Camera Module 5MP 90FPS for HD VideoOV5648 MIPI Camera Module 5MP 90FPS for HD VideoOV5648 MIPI Camera Module 5MP 90FPS for HD Video
